Features of LVLP Air Spray Gun
HVLP air spray gun has long become the mainstream product of pneumatic spray guns, but LVLP spray gun can not be ignored, it is also a high-performance product, LVLP air spray gun use compressed air in a low-pressure and low-flow way, through the nozzle atomization of the paint into tiny particles, and make it evenly attached to the surface of the object to be sprayed. The amount of air used is generally 5-18CFM, and the air pressure is between 10-30PSI, let's take rongrong R500 as an example to discuss it together.
With an operating pressure of 2.0-3.5 bar and an air consumption of 3.0-3.9cfm, the rong peng R500 air spray gun consumes less air than HVLP guns and consumes less compressed air when spraying, reducing operating costs. The air pressure is lower than the 35-60PSI of a typical conventional air spray gun, but higher than the 0.1-10PSI pressure at the air cap of an HVLP gun, which reduces over-atomization and

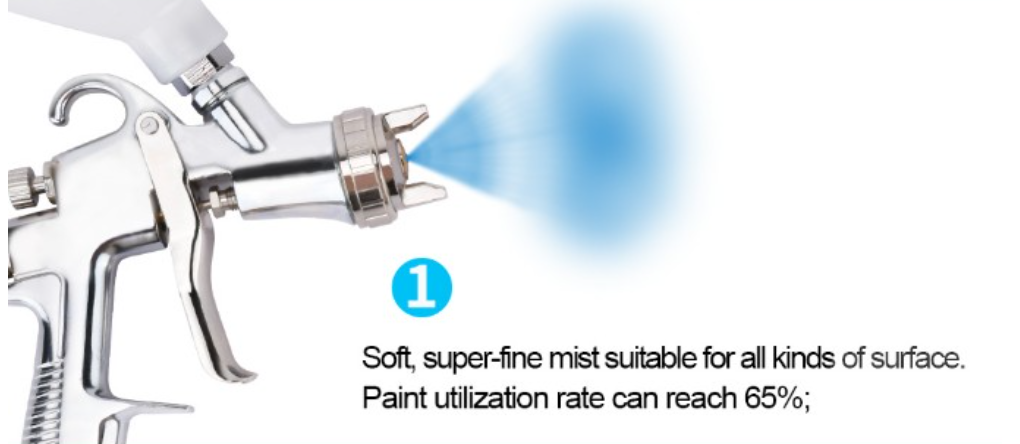

scattering of the paint while maintaining the atomization effect. And 65% paint utilization rate can reduce paint waste and reduce spraying costs.

Wide range of applications
The standard nozzle diameter of rongpeng R500 is 1.5mm, and there are 1.3, 1.7, and 2.0mm diameters to choose from.
1.3 Caliber: The atomized particles are fine, and can obtain a very delicate spraying effect, which is suitable for occasions with extremely high requirements for surface quality, such as fine spraying of art furniture, electronic product shells, etc., and is suitable for spraying low-viscosity and fine-grained coatings, such as varnishes, pigments, etc., and high-viscosity coatings need to be diluted first.
1.5 Caliber: The atomization effect is good, the particles are uniform and fine, which can meet the needs of most automotive topcoat spraying, so that the paint surface is smooth and flat, and the color is uniform. It can be sprayed with low to medium viscosity coatings, including some slightly viscous topcoats, refinish paints, etc., and has a wide range of applications.
1.7 Caliber: The atomization particles are relatively large, but they can still ensure good spraying quality, and are suitable for spraying some workpieces that do not have particularly high requirements for atomization but need to be covered quickly, such as the middle coat of automobiles, the topcoat of some industrial products, etc.
It can be adapted to medium-viscosity coatings, such as primers, primers, etc., and can also be sprayed with high-viscosity paints that have been partially diluted.
2.0 caliber: the atomization particles are large, mainly used for primer spraying or occasions with low requirements for atomization, which can quickly cover the surface of the workpiece and improve the spraying efficiency. It is suitable for spraying high-viscosity coatings, like some heavy primers, anticorrosive paints, putty, etc., which can be sprayed without too much dilution.

Corrosion-resistant

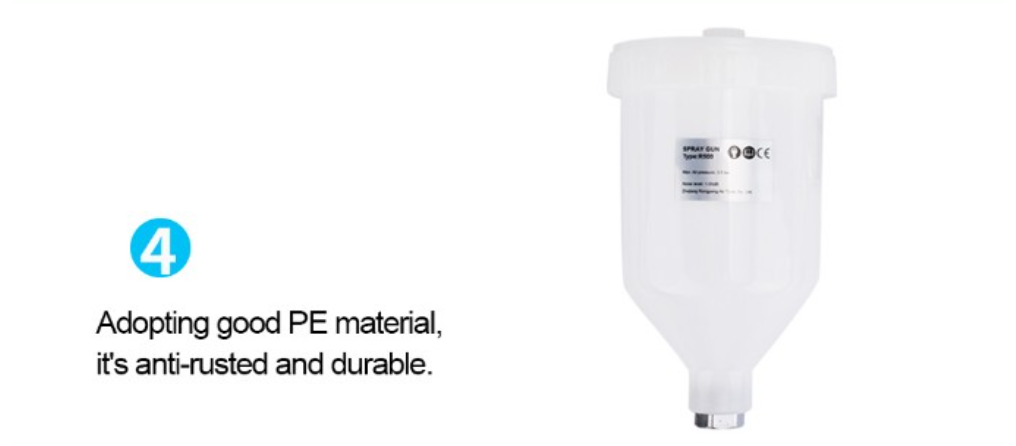

Rongpeng R500 adopts stainless steel needles and nozzles, stainless steel materials have high hardness and good wear resistance, can withstand the high-speed flow of paint and frequent spraying operations, are not easy to be worn, can maintain the shape accuracy of needles and nozzles for a long time, and prolong the service life of the spray gun. Stainless steel has good corrosion resistance, can resist chemicals in the coating, solvents and moisture in the environment and other corrosive factors, prevent needles and nozzles from being damaged by corrosion, and ensure the stable use of the spray gun under different working conditions. The corrosion-resistant polymer cups also ensure that they will not be corroded when facing different paints.

Technical Parameters :
Model No:R500
Standard Nozzle:φ1.5mm
Optional Nozzle:φ1.3mm,φ1.7mm, φ2.0mm
Operating Pressure:2.0-3.5bar
Pattern Width:180-280mm
Air Consumption:3.0-3.9cfm
Paint Capacity:600cc
Air consumption:3.0-3.9cfm  85.3-110.8L/min
Adapter Thread Size:Internal Thread M16x1.5
